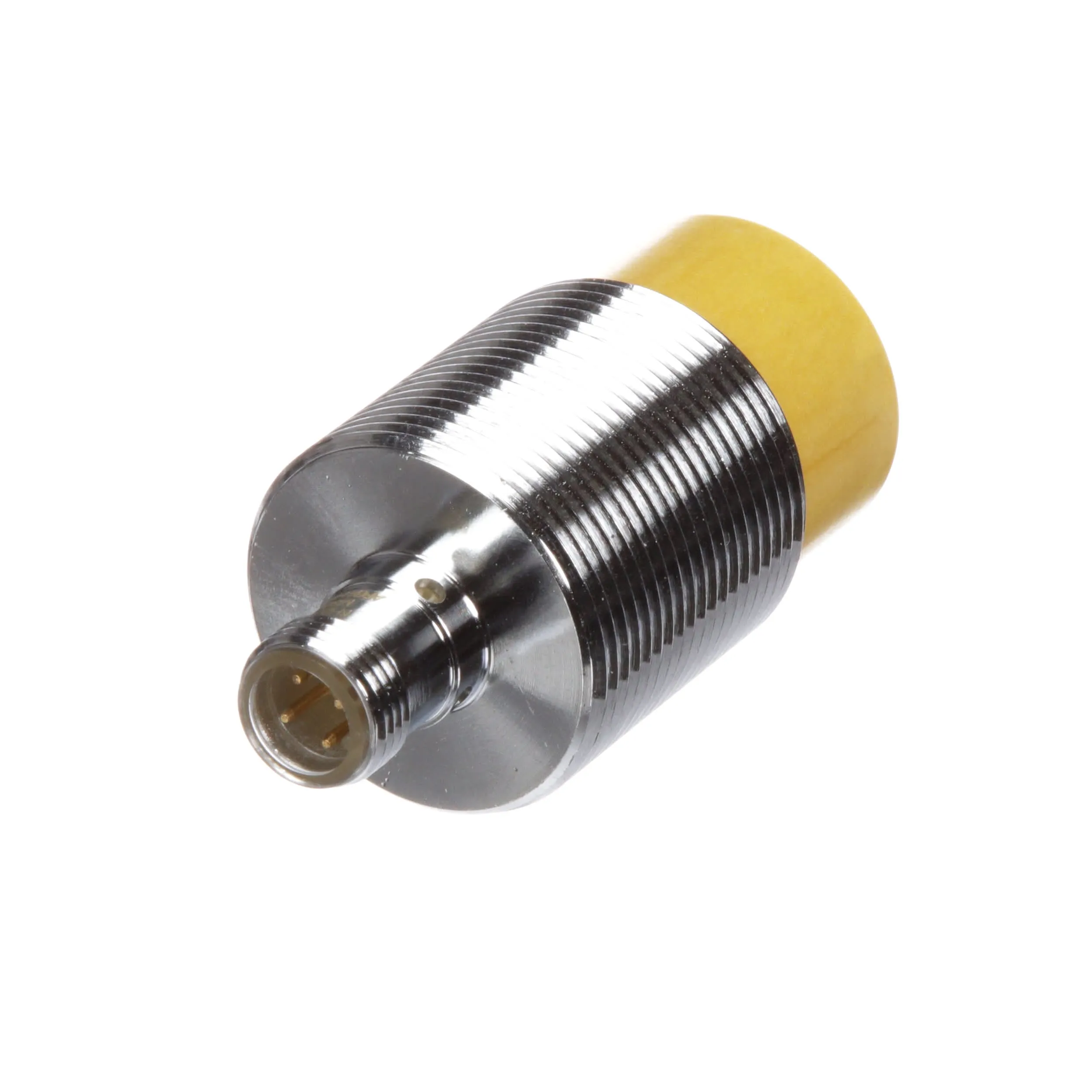

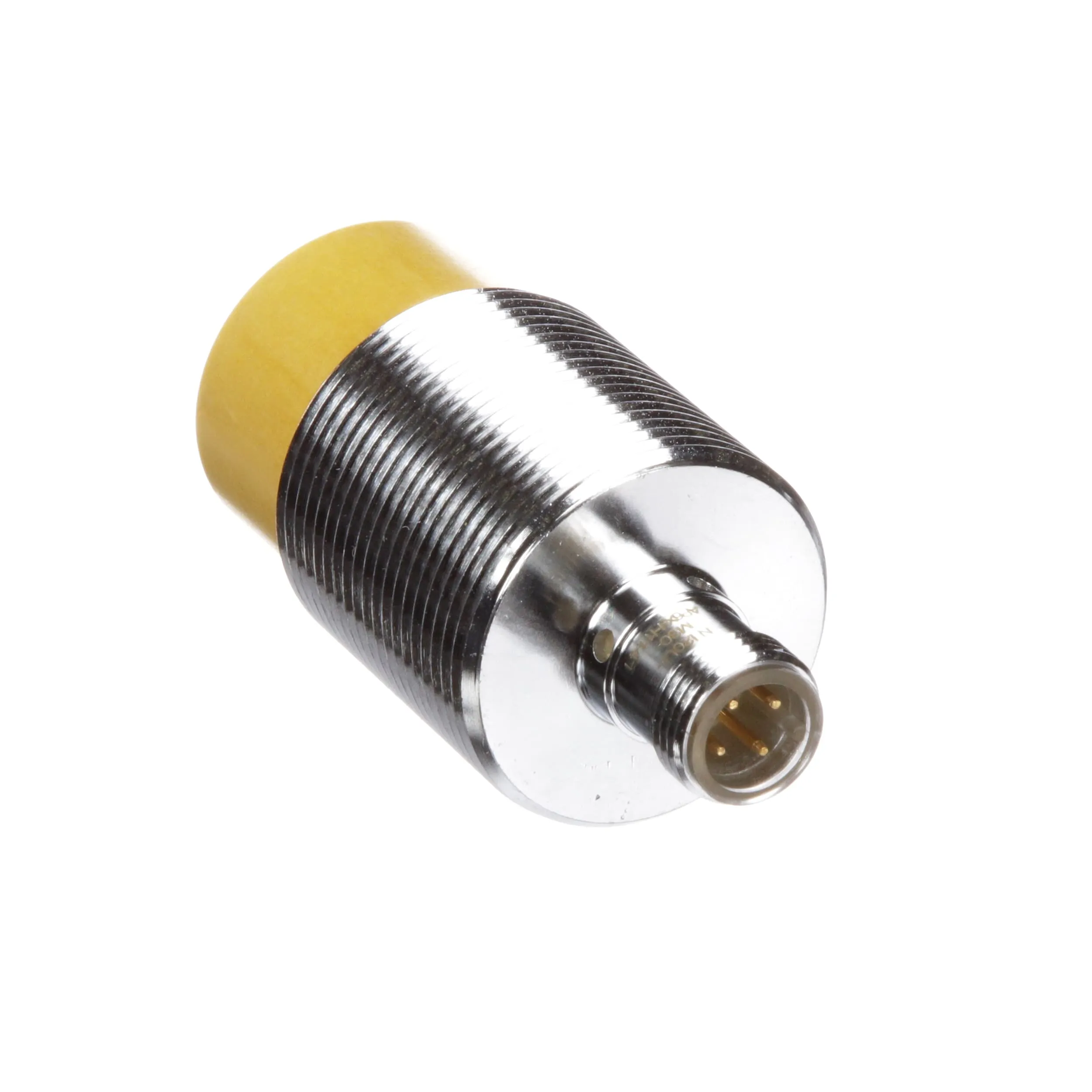

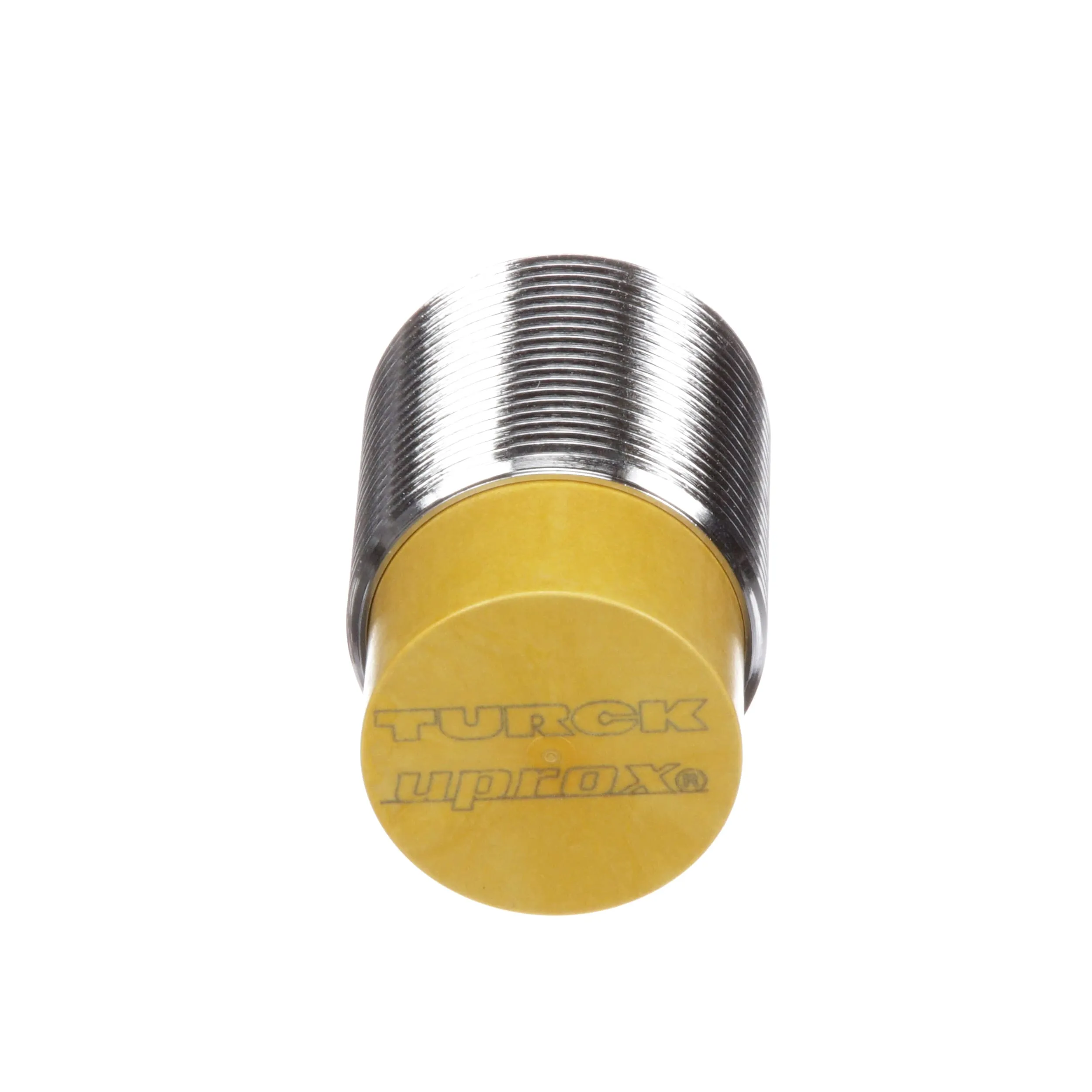

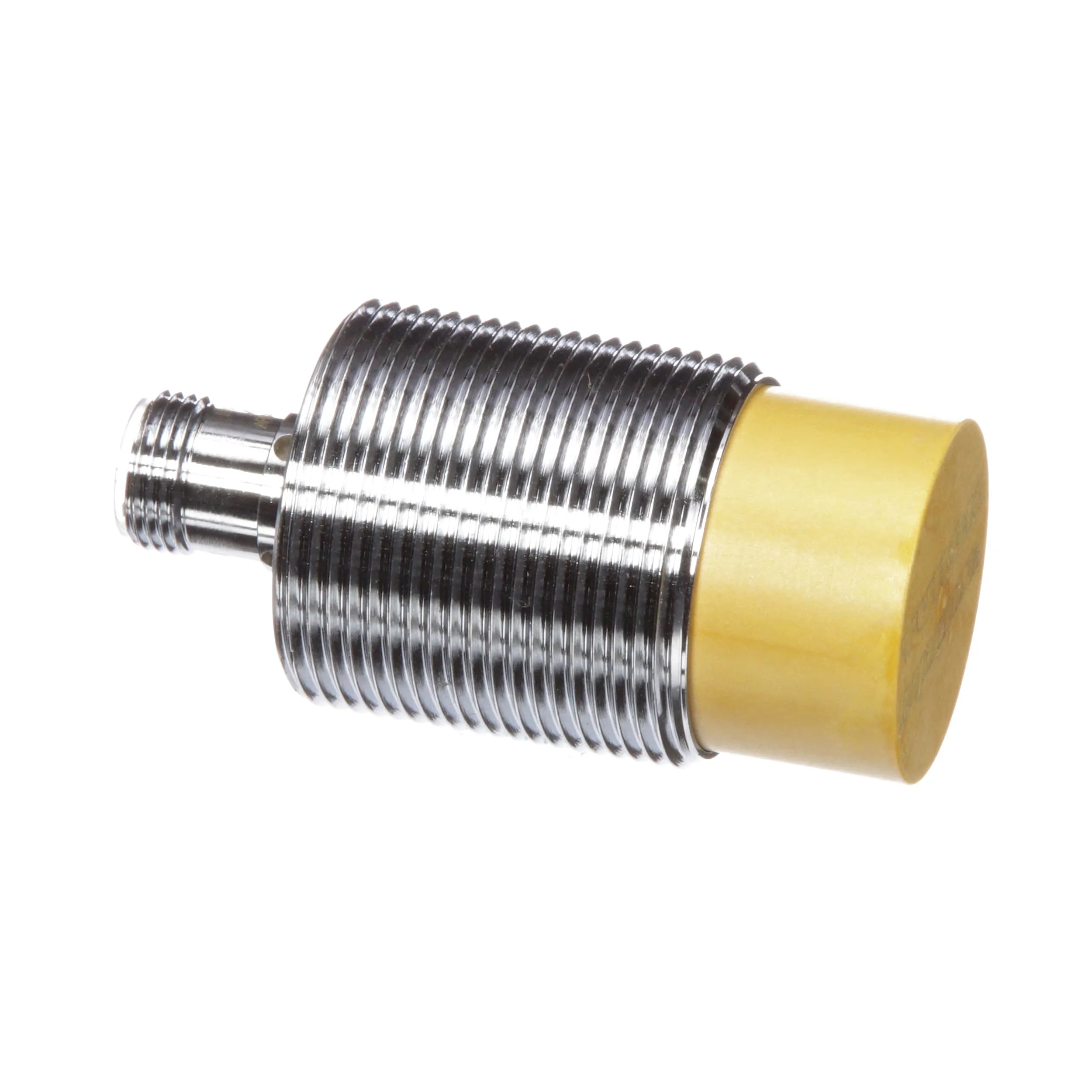

TURCK NI20U-M30-AP6X-H1141
TURCK NI20U-M30-AP6X-H1141
  • TURCK NI20U-M30-AP6X-H1141
  • TURCK NI20U-M30-AP6X-H1141
  • TURCK NI20U-M30-AP6X-H1141
  • TURCK NI20U-M30-AP6X-H1141
  • TURCK NI20U-M30-AP6X-H1141
Product Details ＋
Product Attribute Attribute Value
Alternate Mfr Part Number M1646140
Body Style Cylindrical
Current Consumption 200 mA (Max.) (Load)
Current, Switching 200 mA
Dimensions 2.440" L
Frequency, Switching 1.5 kHz
Housing Material Brass
IP Rating IP67
Maximum Operating Temperature 70 C
Measurement Range 20 mm
Minimum Operating Temperature -25 C
Mounting Type M12 Threaded
Operating Temperature, Maximum 70 C
Operating Temperature, Minimum -25 C
Output PNP-NO
Primary Type Inductive Proximity Sensors
Series
Standards Meets NEMA 1, 3, 4, 8, 13 and IEC IP67
Supply Voltage 30 VDC
Termination Wired Connector

Overview

10 to 30 VDC Supply Voltage, 1500 Hz Switching Frequency, Inductive Sensors

  • Brass/nickel plating finish

    Features
  • Choice of Barrel with Potted-In Cable or M8 ( picofast®), M12 ( eurofast®) Quick-Disconnect
  • Short Circuit and Overload Protection Incorporated
  • Reverse Polarity and Wire Break Protection
  • LEDs Indicate: Output Energized and Short Circuit Warning
  • Normally Open Output
    Specifications
  • Environment Rating: NEMA 1, 3, 4, 4x, 6, 13; IP 67
  • Operating Temperature: -13°F to 158°F
  • Continuous Load Current: 200 mA Max.
  • Voltage Drop: 1.8 VDC at 200 mA
    • TURCK NI20U-M30-AP6X-H1141
    • DefaultTitle

    $ 52.10

    $ 40.08

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
