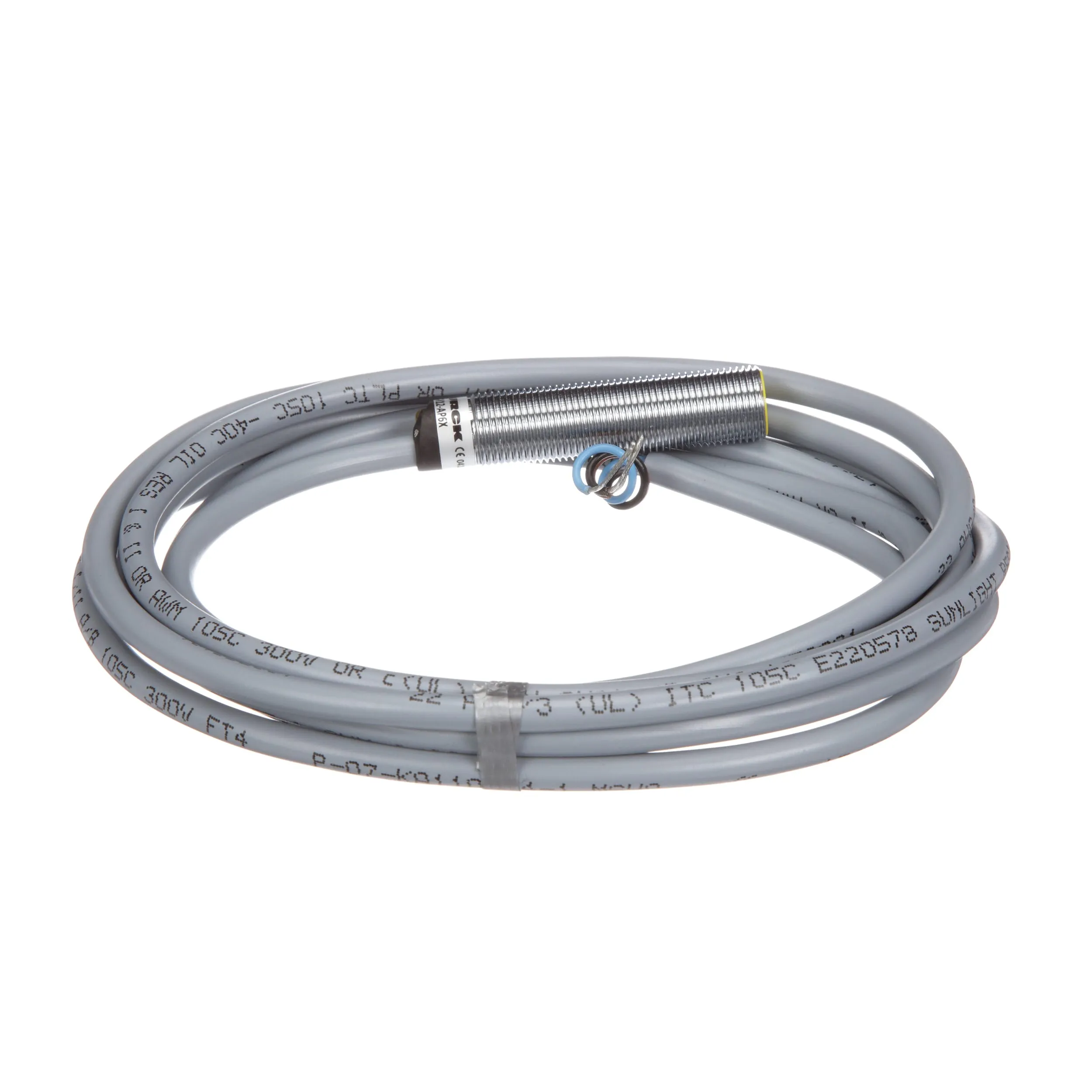

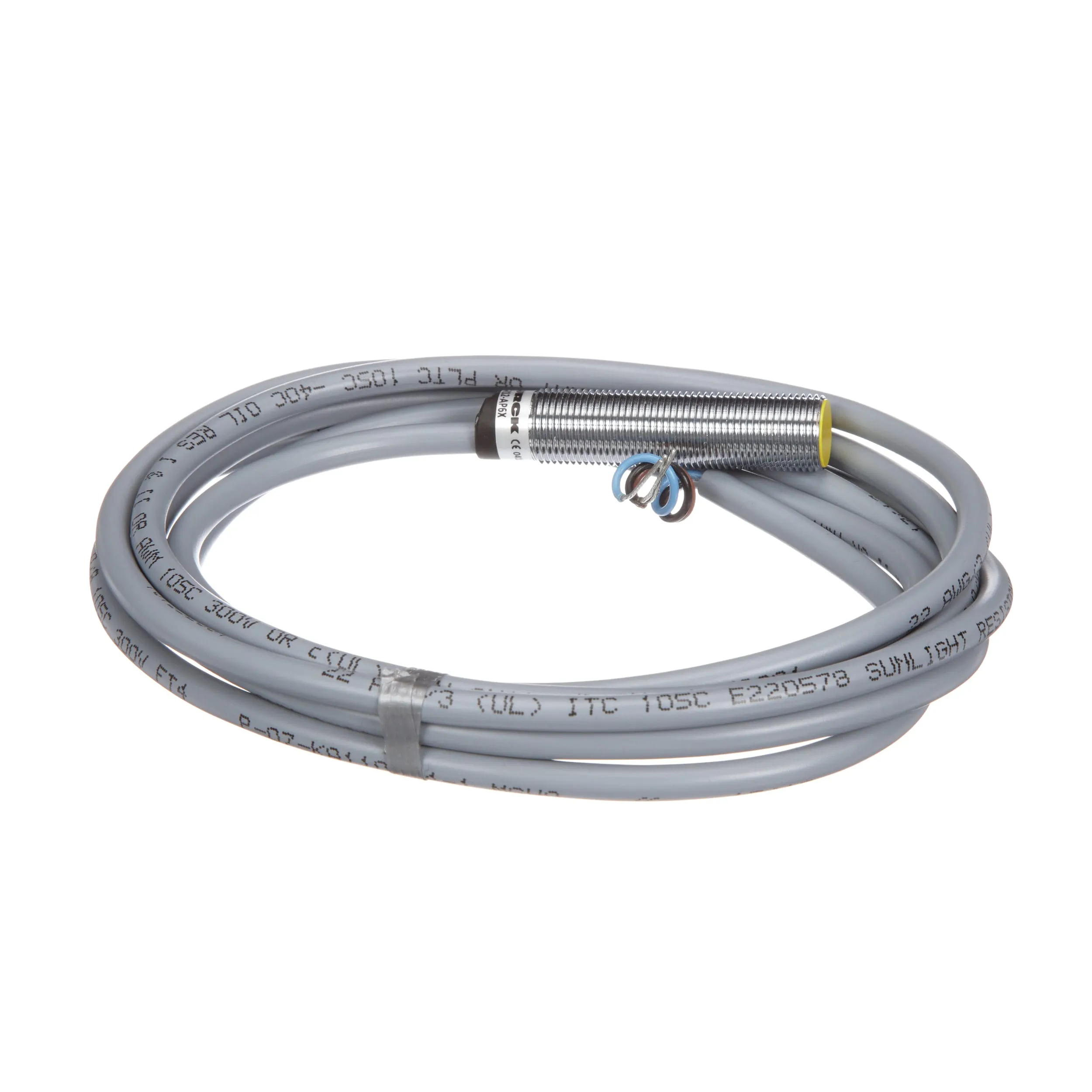

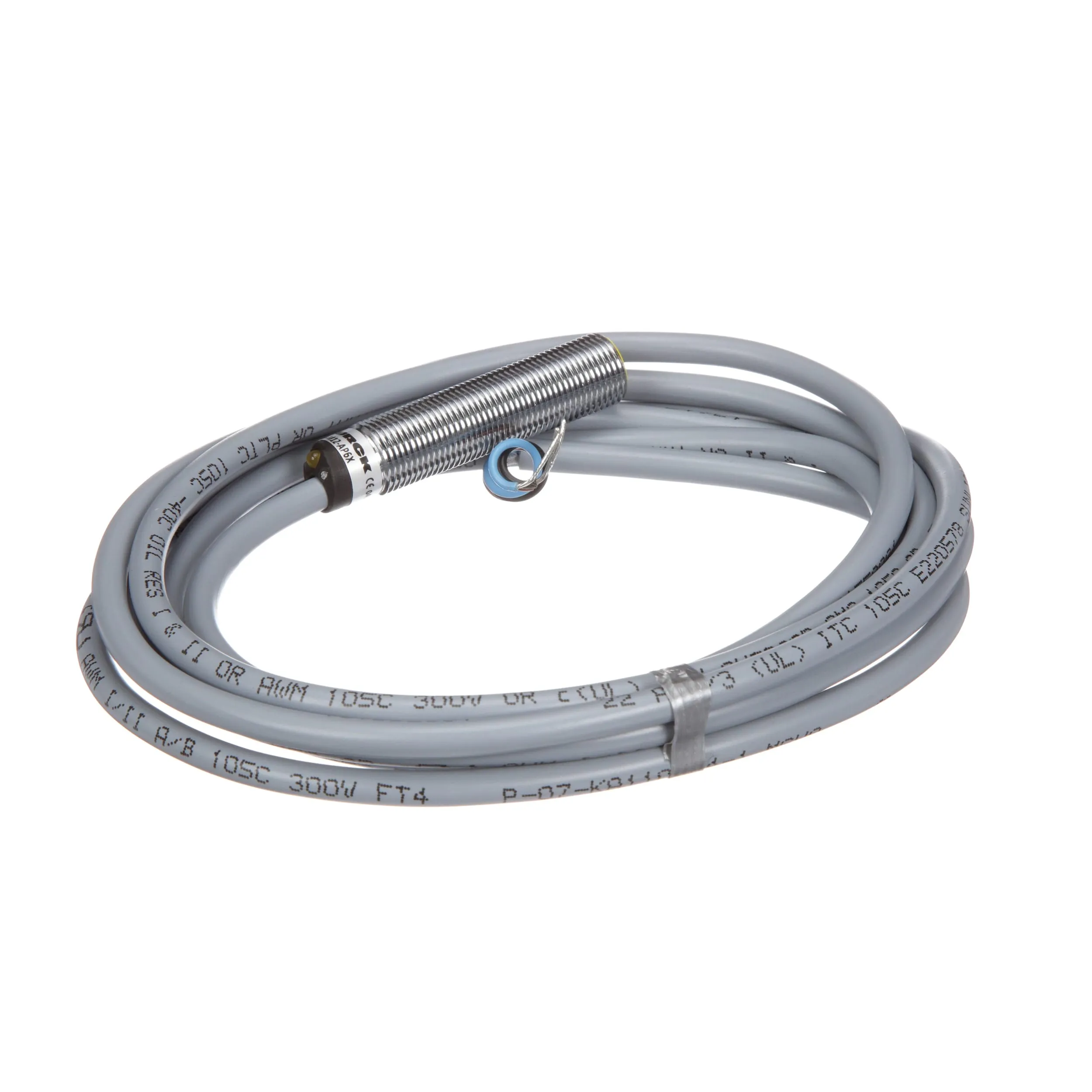

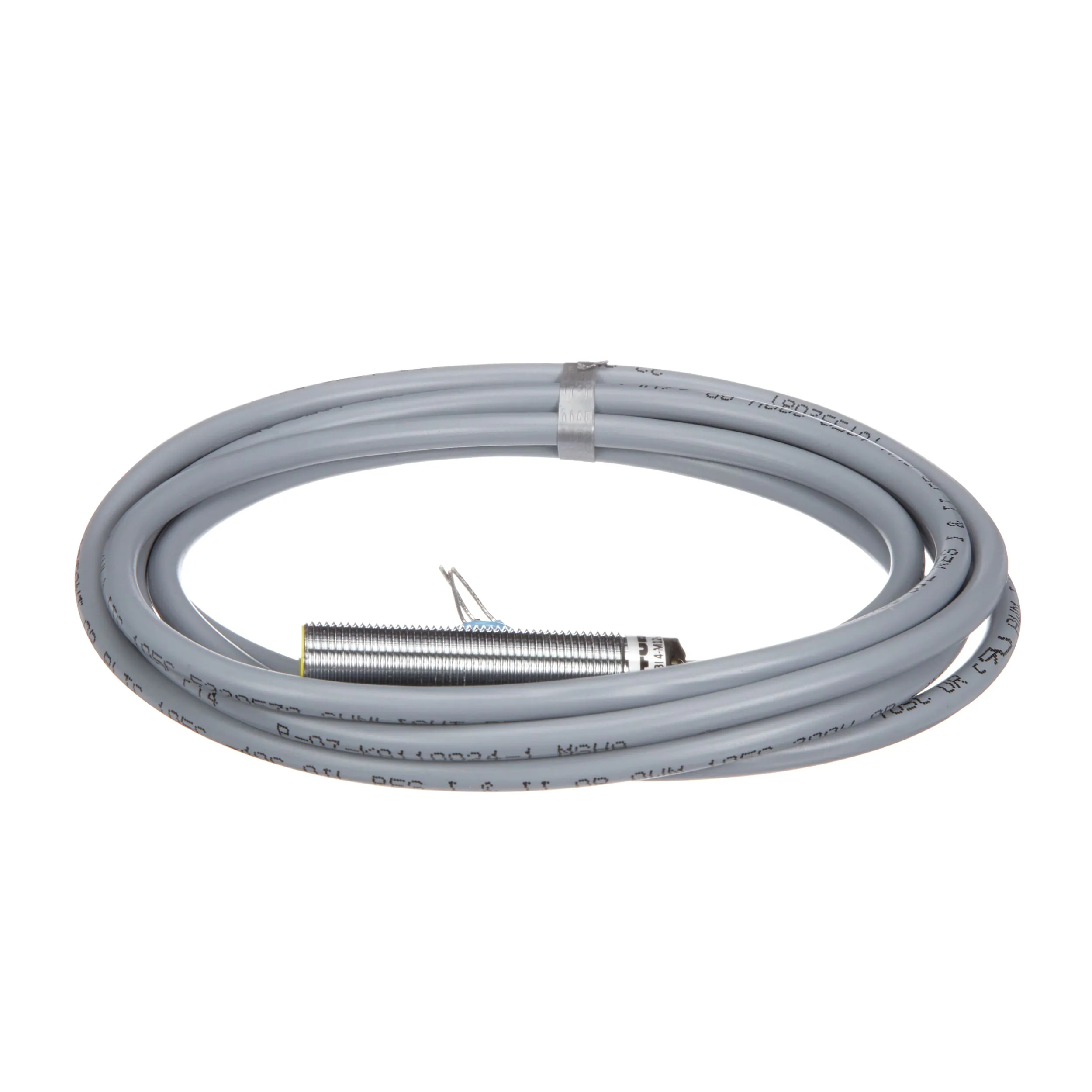

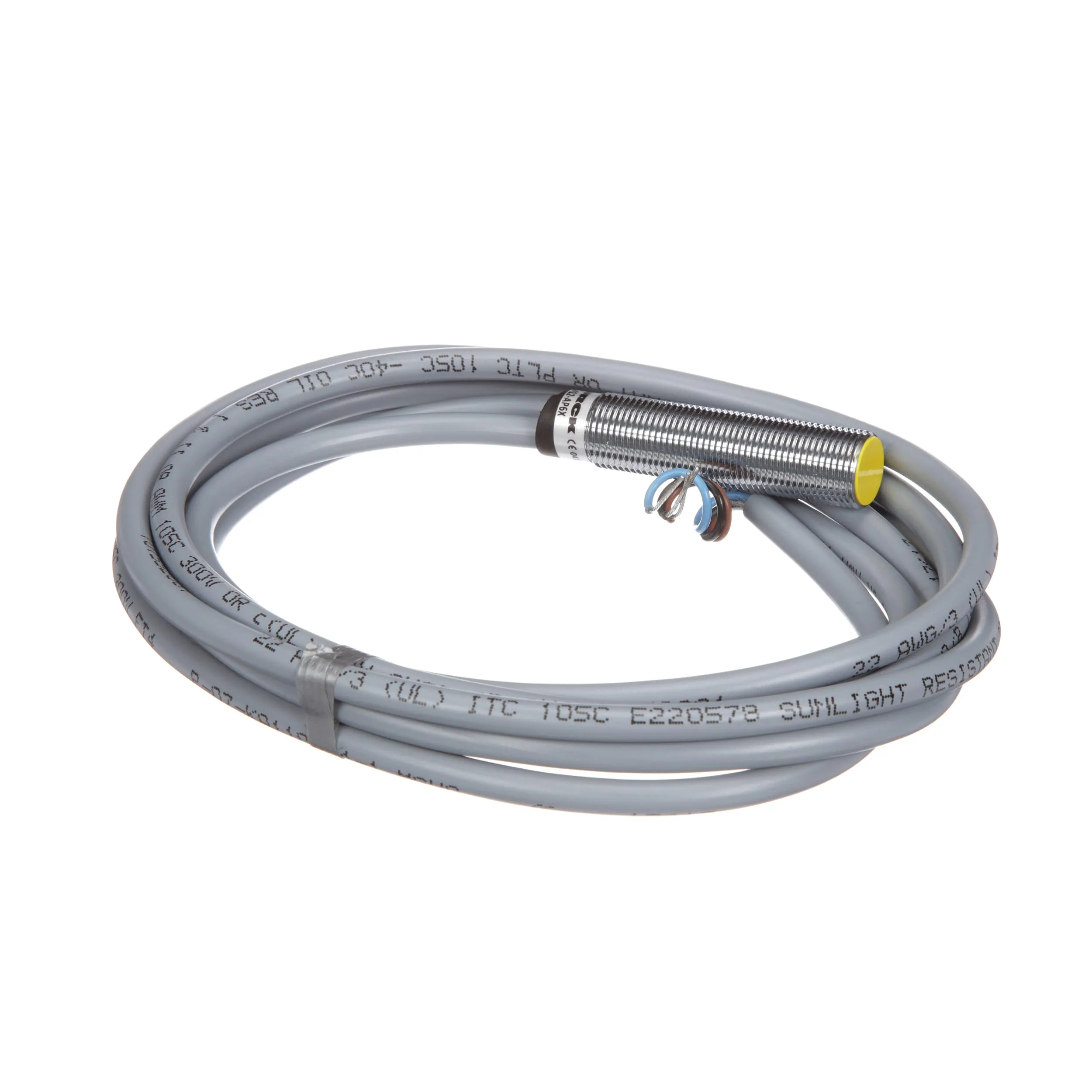

Name: TURCK BI4-M12-AP6X
SKU: 605854

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	T4607006
Body Style	Cylindrical
Current Consumption	200 mA (Max.)
Current, Switching	200 mA
Dimensions	1.969" L
Frequency, Switching	2 kHz
Housing Material	Brass
IP Rating	IP67
Maximum Operating Temperature	70 C
Measurement Range	4 mm
Minimum Operating Temperature	-25 C
Mounting Type	M12 Threaded Flush
Operating Temperature, Maximum	70 C
Operating Temperature, Minimum	-25 C
Output	PNP-NO
Primary Type	Inductive Proximity Sensors
Series
Shielding	Shielded
Standards	FM Approved
Supply Voltage	30 VDC
Termination	3-Wire Cable

Overview

Solve space problems with ® miniature inductive proximity sensors. Perfect for positioning control, small parts placement, robotic grippers, counting, inspecting and other applications where space is a problem. Self contained DC units switch 100 mA loads with tiny 4 mm, 5 mm, 6.5 mm and 8 mm diameter housings with built-in LEDs.

Choice of Barrel with Potted-In Cable, M8 (®), M12 (®), Quick-Disconnect or Terminal Chamber

Short-Circuit and Overload Protected

Reverse Polarity and Wire Break Protection

LED Indicator: Output Energized (Additional Power on LED, Terminal Chamber Versions)

Normally Open Output

Environment Rating: NEMA 1, 3, 4, 6, 13; IP67

Operating Temperature: –13°F to 158°F

Voltage Drop: 1.8 VDC at Max. Load Current
