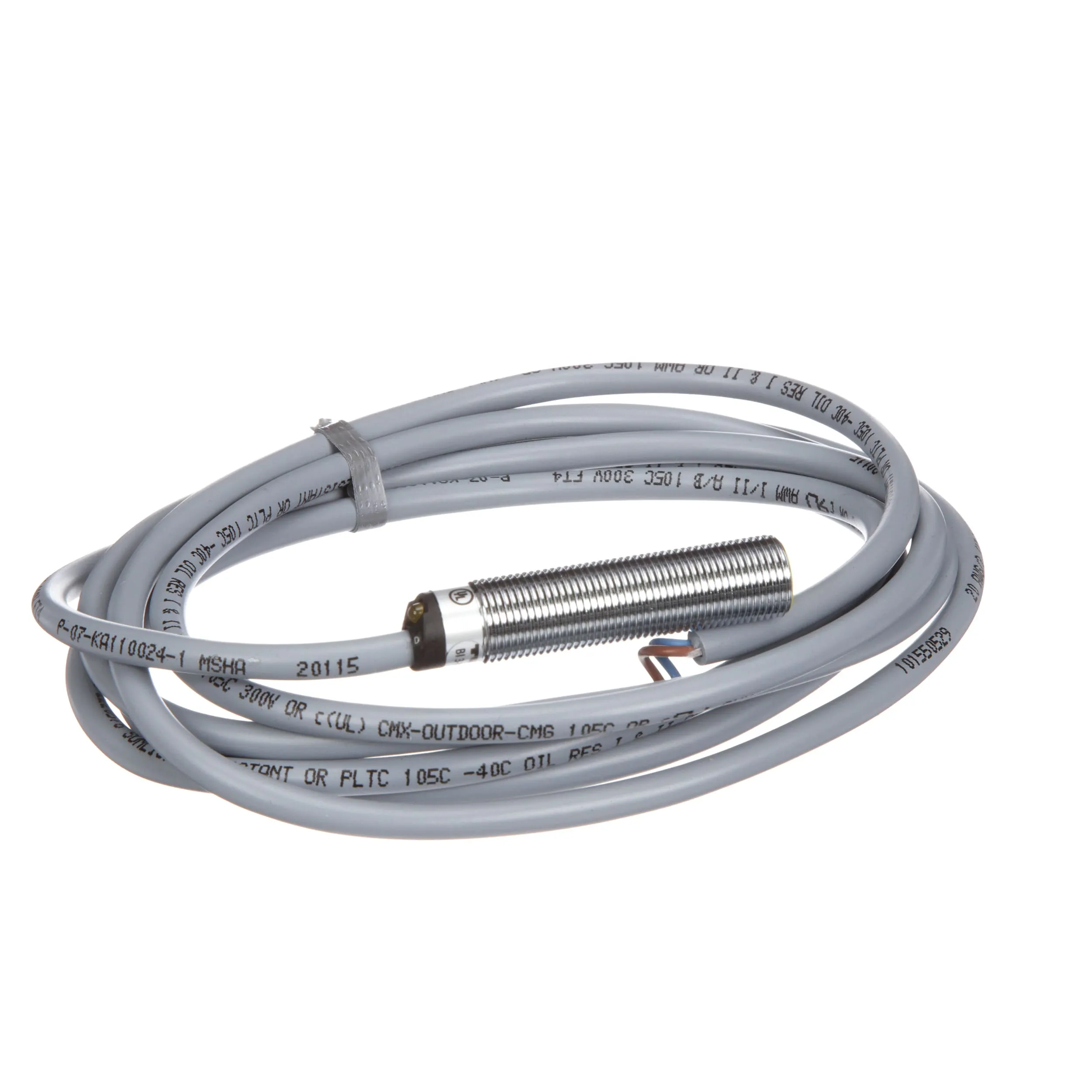

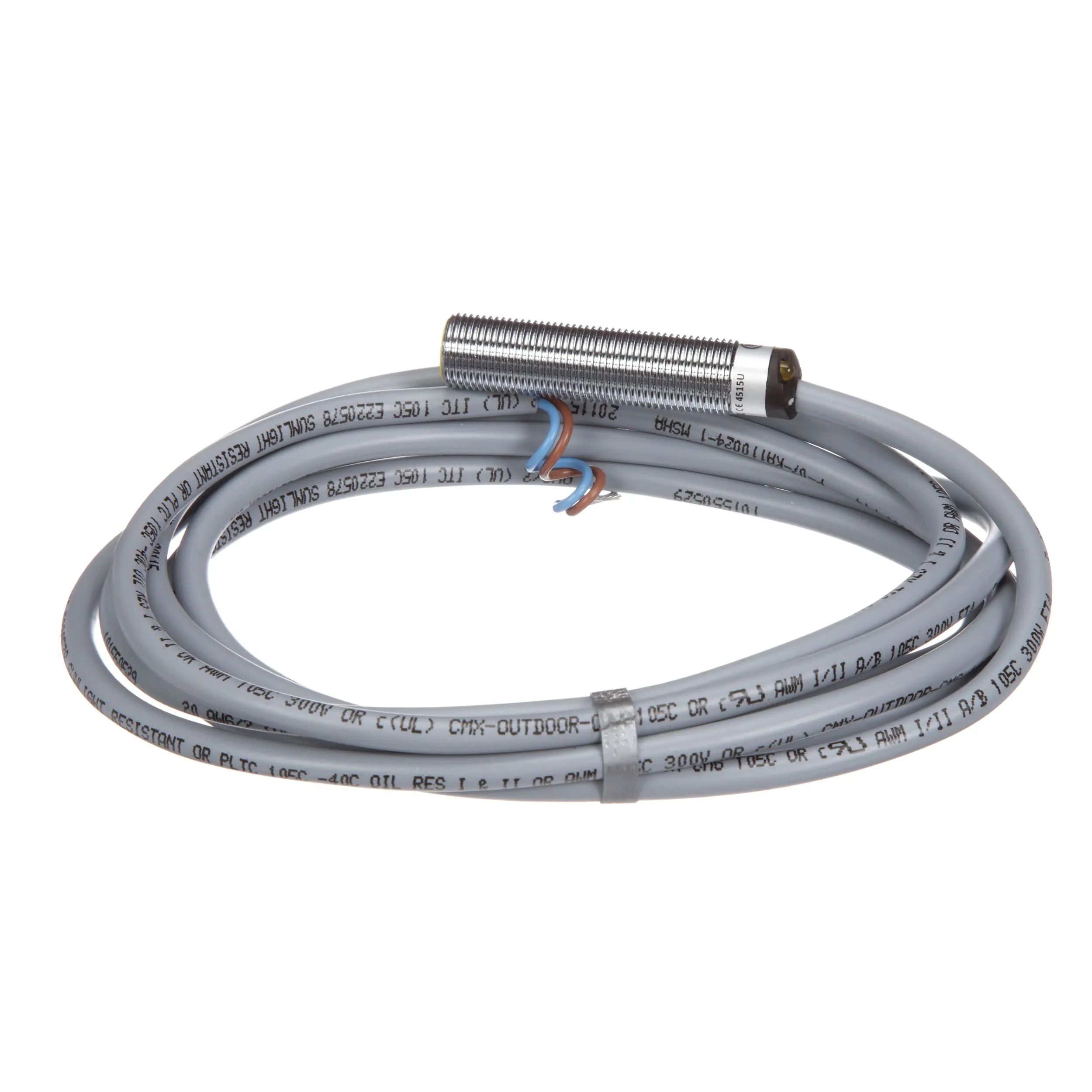

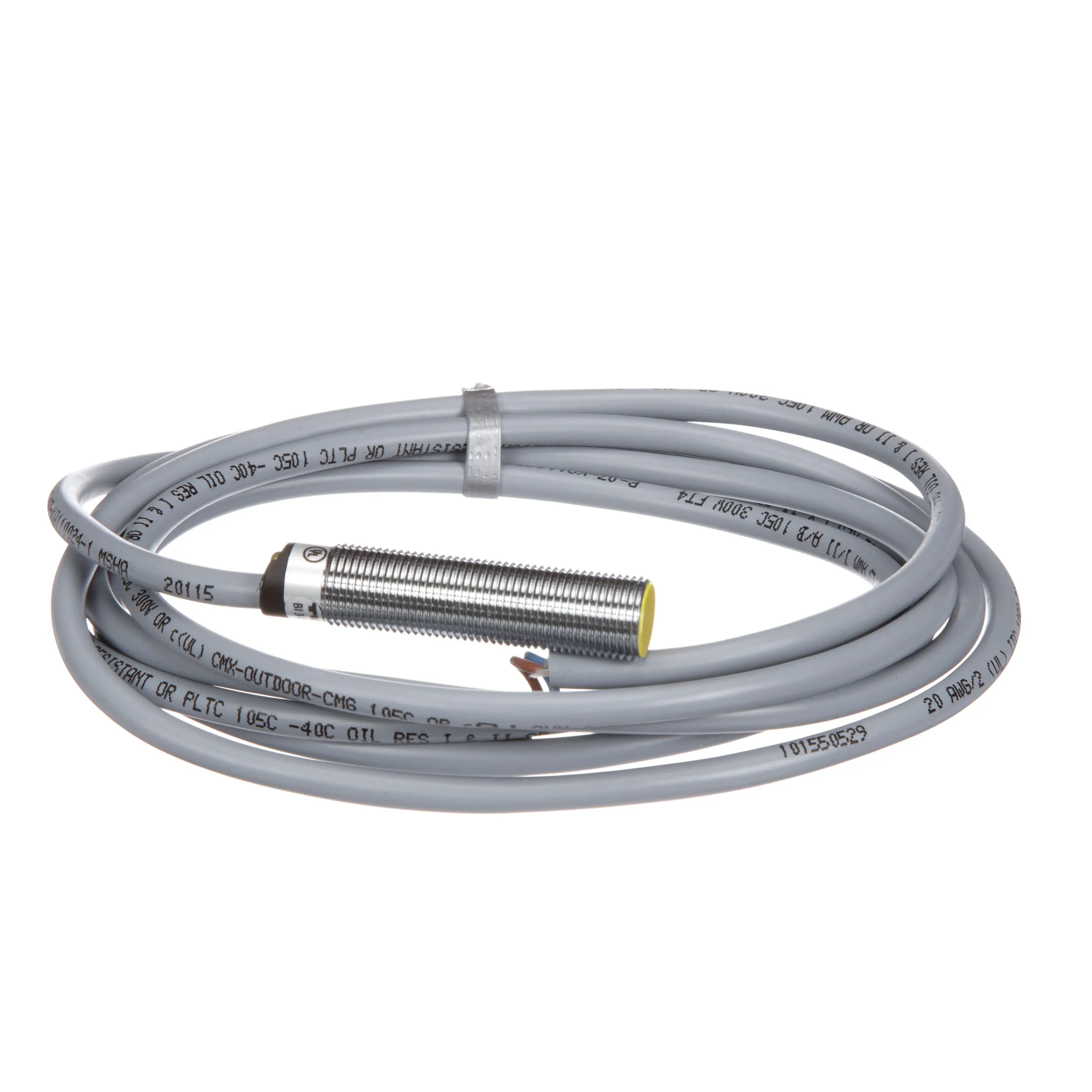

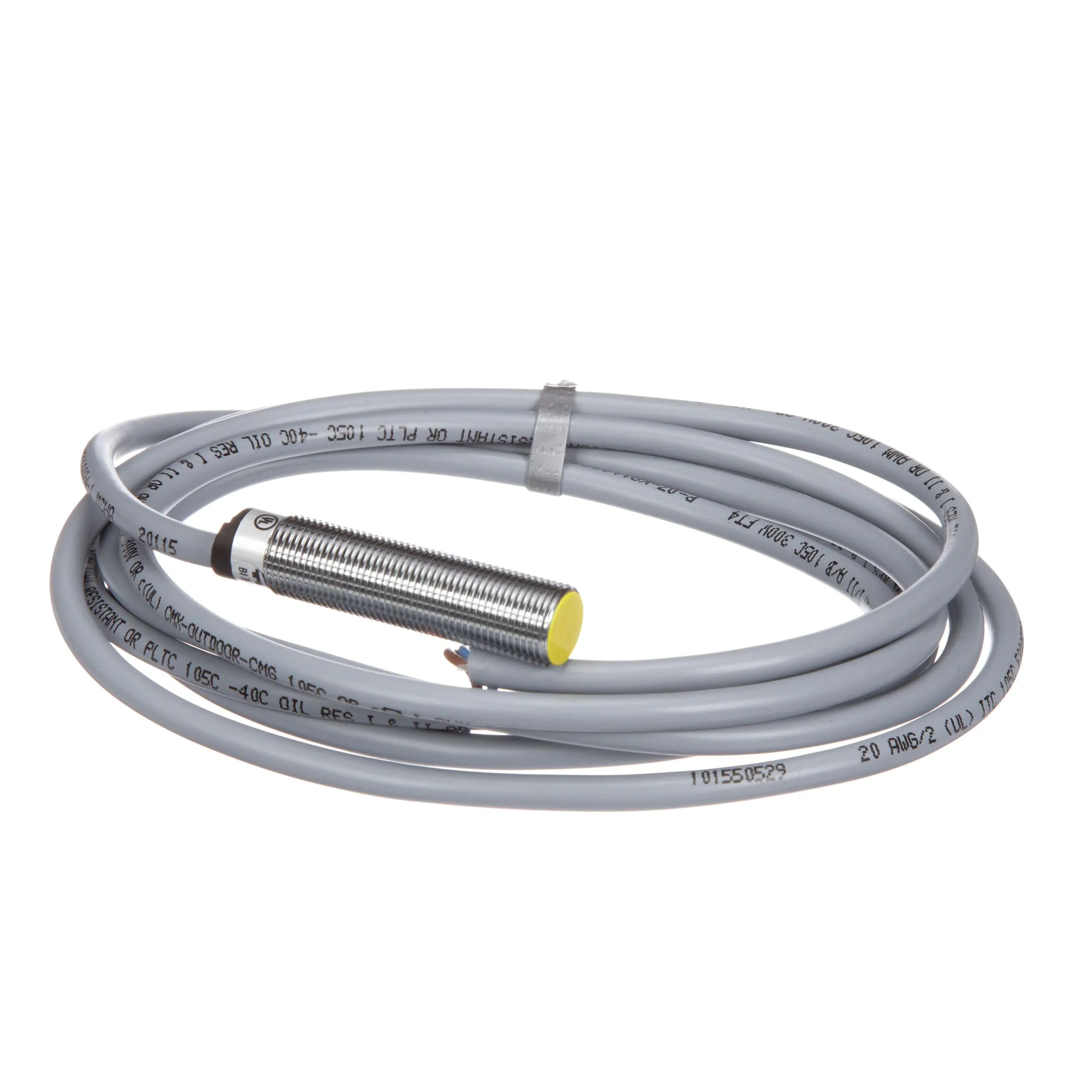

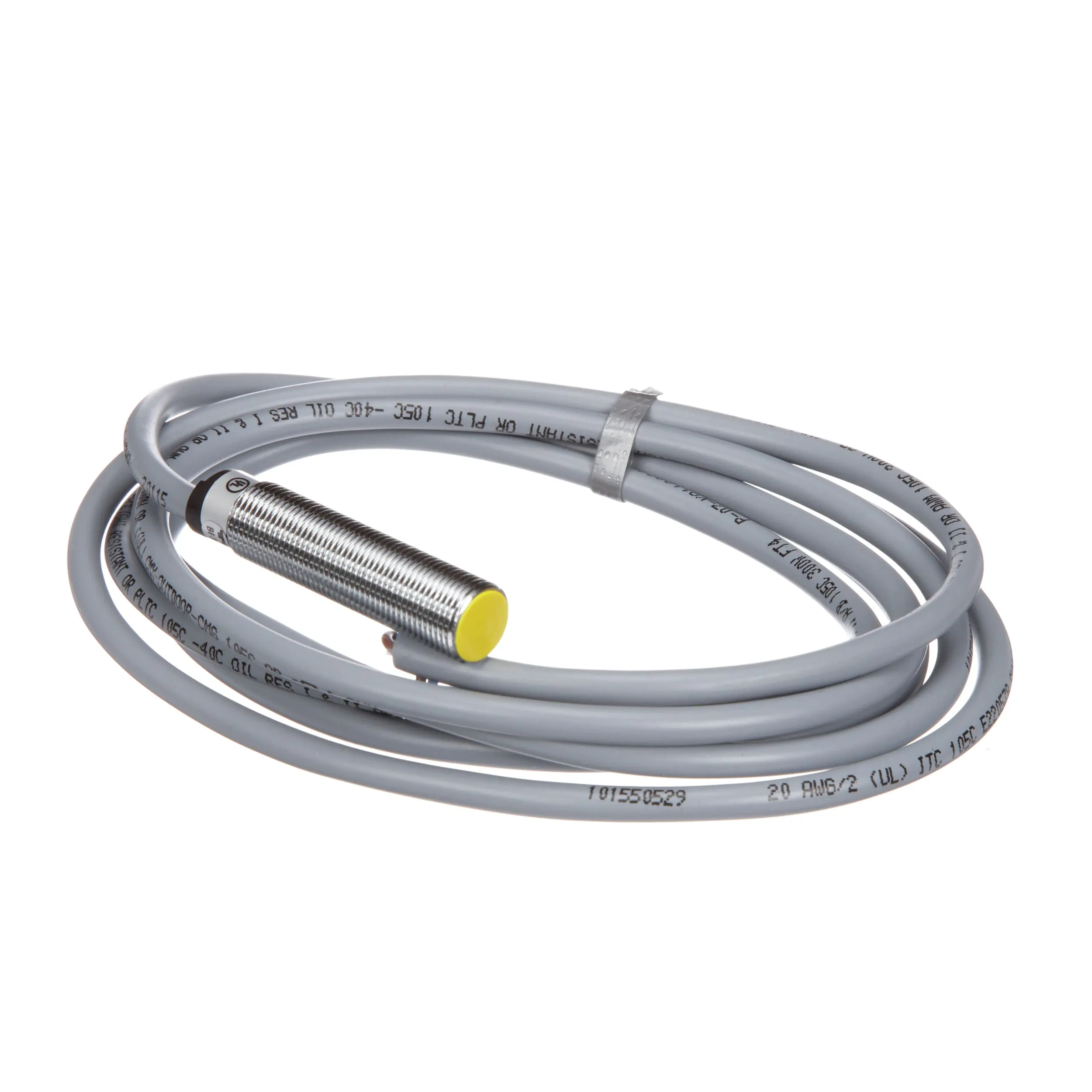

Name: TURCK BI3-M12-AD4X
SKU: 598393

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	T4405035
Body Style	Cylindrical
Current Consumption	100 mA (Max.)
Current, Switching	100 mA
Dimensions	1.969" L
Frequency, Switching	1 kHz
Housing Material	Brass
IP Rating	IP67
Maximum Operating Temperature	70 C
Measurement Range	3 mm
Minimum Operating Temperature	-25 C
Mounting Type	M12 Threaded Flush
Operating Temperature, Maximum	70 C
Operating Temperature, Minimum	-25 C
Output	NO
Primary Type	Inductive Proximity Sensors
Series
Shielding	Shielded
Supply Voltage	65 VDC
Termination	2-Wire Cable

Overview

TURCK inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number. Embedded (shielded) units may be safely flush-mounted in metal. Non-embeddable (non-shielded) units require a metal free area around the sensing face. Because of possible interference of the electromagnetic fields generated by the oscillators, minimum spacing is required between adjacent or opposing sensors.

Features:

Choice of Barrel with Potted-In Cable or M12 (®) Quick-Disconnect

Short-Circuit and Overload Protected

Reverse Polarity and Wire Break Protection

LED Indicator: Output Energized

Environment Rating: NEMA 1, 3, 4, 6, 13; IP67

Operating Temperature: –13° to 158°F

Max. Load Current: 100 mA

Voltage Drop: 5.0 VDC at 100 mA

Max. Leakage Current: 0.8 mA
