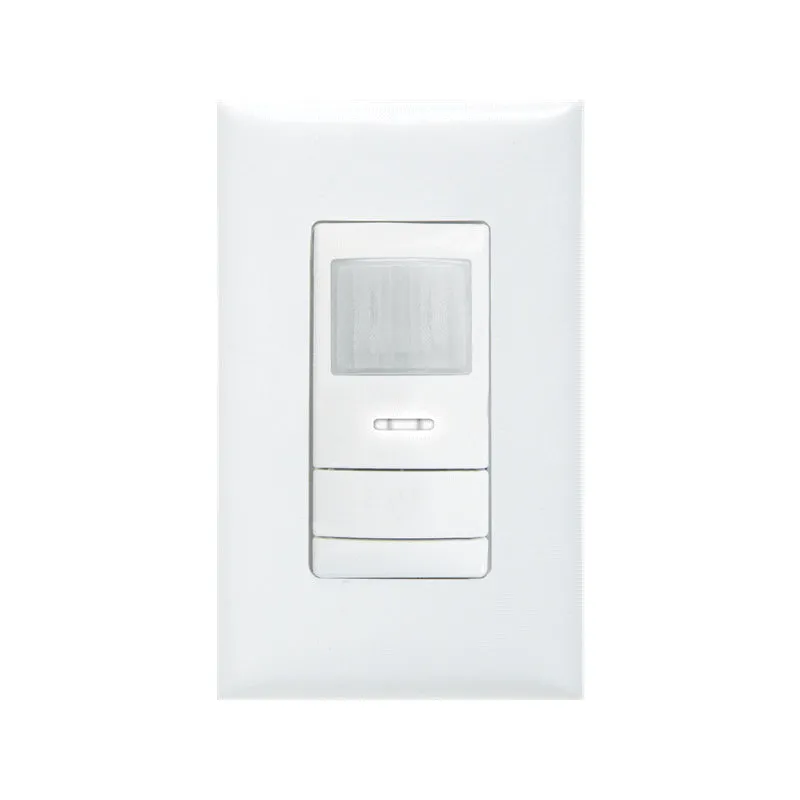

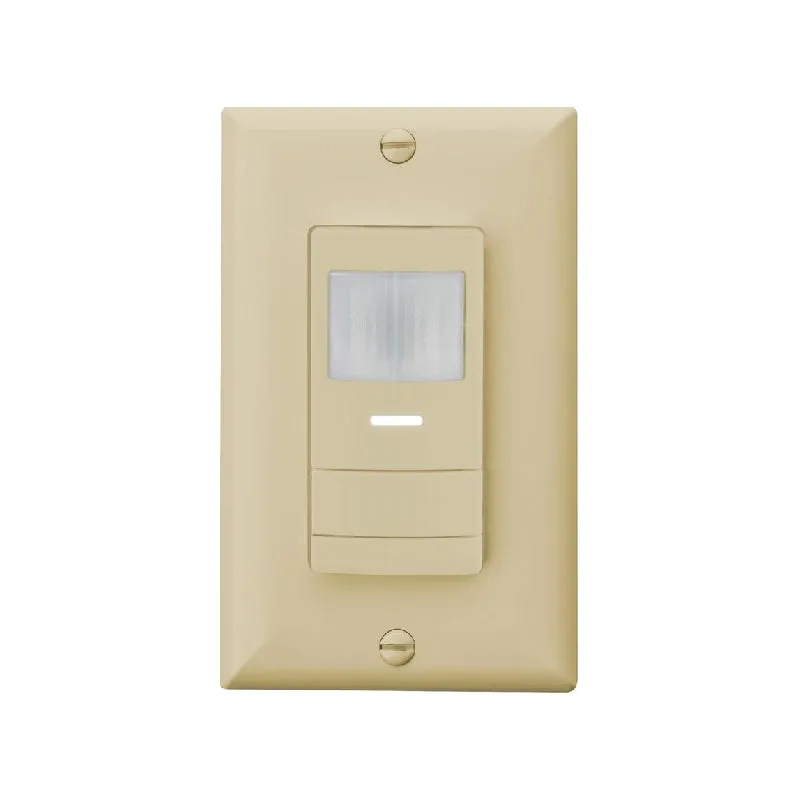

The WSX family of wall switch occupancy sensors provide simple and cost-effective solutions for commercial and residential lighting control applications. With your choice of passive infrared (PIR) or dual technology (PDT) with PIR plus patented Microphonics detection, the WSX family provides reliable sensing and dimming performance optimized for your space.

Features

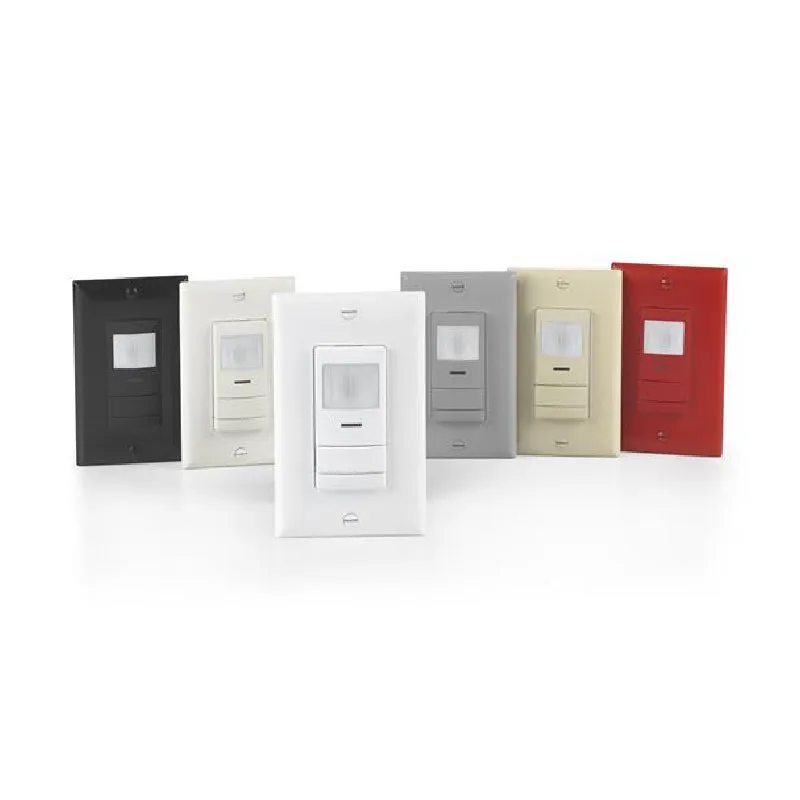

• Finish: Gray, Ivory, Almond, White

• Type: Dual Technology (PIR/Microphonics)
• Operating Mode: Auto-on (default) or vacancy
• Voltage: 120-277 VAC
• Temp / Humidity: Standard

• Programmable with Sensor Switch VLP app or traditional push button, refer to ordering information for availability
• Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
• 100% passive detection, no potential for interference with other building systems
• Small motion detection to 20 ft
• Push-button programmable without removing cover plate - adjustable time delays & operating modes
• Dual technology (PDT) utilizes PIR/Microphonics™ detection (patented)
• Self-grounding mounting strap
• Ultra low current leakage (<0.5 mA) when connected via ground.
• Fully meets NEC 2017 Section 404.2C neutral requirements - no current leakage to ground when connected to neutra
• Line power and load wires are interchangeable - impossible to wire backwards (patented)
• Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present — not available in Nightlight versions
• Vandal resistant lens

Dimensions

• Width: 2.74"

• Height: 1.68"
• Depth: 1.63"

Warranty

• 5-Year Limited Warranty
