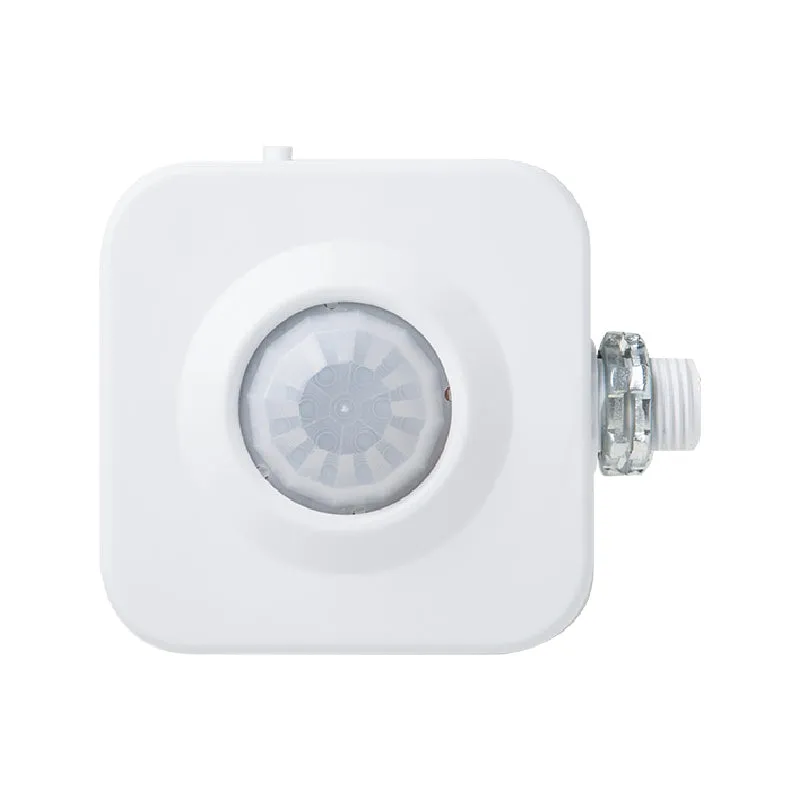

The CMRB family of fixture mount line voltage occupancy sensors provide a range of sensor solutions. The CMRB sensor mounts directly to the end of a lighting fixture through an extended 1/2 inch chase nipple.

Features

• Color: White
• Type: Small Motion 360º
• Voltage: 120/230/277 VAC
• Detection Technology: PIR

• Temp/Humidity: Low Temp/ High humidity
• 360° and Aisleway coverage pattern
• Push- button programmable, adjustable time delays, and multiple operating modes
• 100 hr lamp burn-in timer
• No field calibration or sensitivity adjustments required
• Green LED indicator
• Self-Contained Relay, no Power Pack needed
•  Dimming sinks up to 20 mA
• No minimum Load Requirements
•  Compatible w/ Electronic & Magnetic Ballasts, CFLs, LED, & Incandescents

Dimensions

• Diameter: 4.55"

• Height: 1.55"


Warranty

• 5-Year Limited Warranty
