Camera

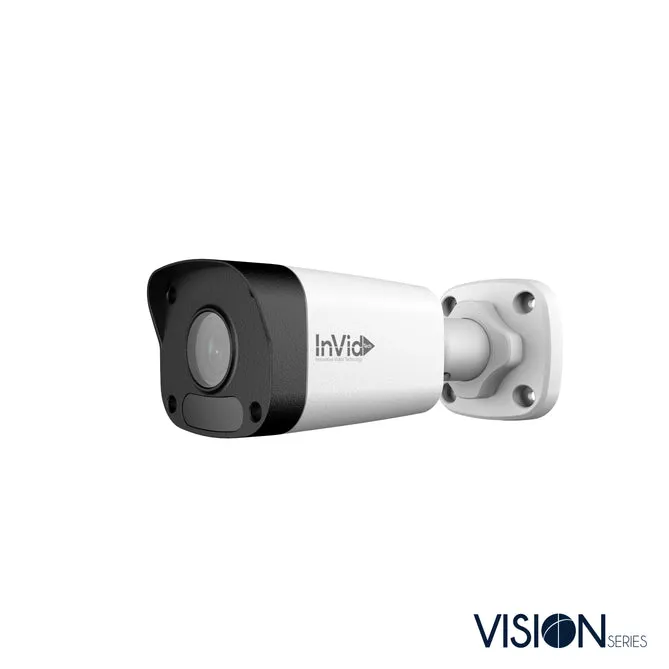

VIS-P8BXIR28NH

Sensor

1/3", 8.0 megapixel, progressive scan, CMOS

Lens

[email protected]                                                [email protected]

DORI Distance

Lens (mm)  Detect(m)   Observe(m)  Recognize(m)  Identify(m)

2.8              275.6(84m)  110.2(33.6m) 55.1(16.8m)   27.6(8.4m)

4.0             393.7(120m)  157.5(48m)   78.7 (24m)     39.4(12m)

Angle of View (H)

101°                                                               86.5°

Angle of View (V)

51.1°                                                              44.1°

Angle of View (O)

131.3°                                                            106.4°

Shutter

Auto/Manual, 1~1/100000 s

Adjustment angle

Pan: 0° ~ 360°                   Tilt: 0° ~ 90°             Rotate: 0° ~ 360°

Min. Illumination

Colour: 0.05 Lux (F2.0, AGC ON) 0 Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>56dB

IR Range

Up to 98 ft  (30m) IR range

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream:8MP (3840*2160):

Max. 20 fps;5MP(2944*1656): Max. 30 fps;

4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps

Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps

HLC

Supported

BLC

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas

Smart

Behavior Detection

Human Body Detection

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS,

DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS

Compatible Integration

ONVIF(Profile S, Profile T), API

Interface

Network

10/100M Base-TX Ethernet

General

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 5.5W

Dimensions (L × W × H)

6.6”×2.5”×2.5”  (167.3×62.9×62.7mm)

Weight

0.99lb  (0.45kg)

Working Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH(non-condensing)

Ingress Protection

IP67

Reset Button

Supported

Certification

UL: A6064, E496771
