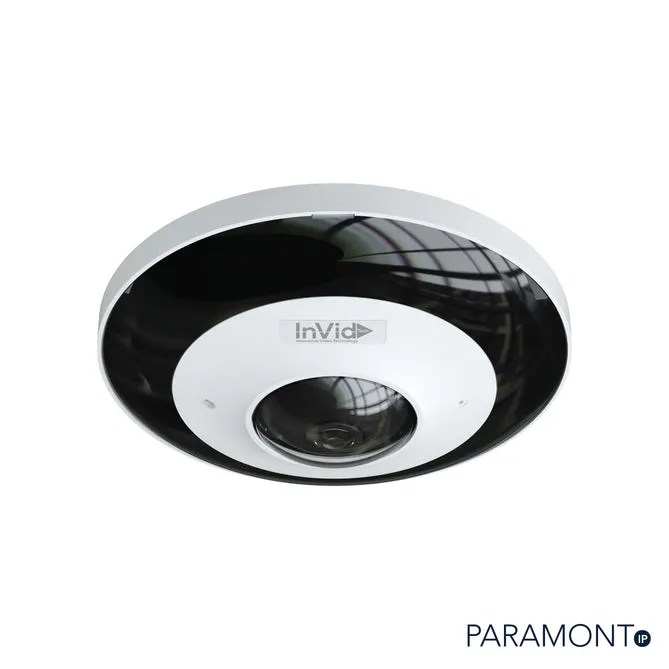

6 Megapixel IP Plug & Play Camera, Indoor Panoramic Camera, up to 98’ IR Range, CVBS Output, Built-in Mic, SD Card Slot, PoE/12VDC
Features
- 6 Megapixel (2160 x 2160) Resolution
- Fixed Lens/360 Degree ViewDewarping Capabilities
- H.265/H.264/MJPEG Compression
- True Day/Night
- 30 FPS Recording and Live
- D-WDR
- IR Range up to 98’
- CVBS Video Output
- SD Card Local Storage, 256GB
- Audio Input/Output: Built-In Mic
- 12VDC/PoE Operation
- ONVIF
- Free MAC client software available to manage your system from your Apple computer
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free iOS & Android Apps for Smart Phones & Tablets
Camera |
PAR-P6PANNH |
|
Image Sensor |
1 / 2.9’ 6MP Progressive Scan CMOS |
|
Effective Pixels |
2160 x 2160 |
|
Electronic Shutter |
1/ 25 s ~ 1 / 100000 s |
|
Min. Illumination |
[email protected] AGC ON; 0 lux with IR |
|
Lens |
1.1mm @F2.5, horizontal field of view:180° (desktop) 180° (ceiling mounting) |
|
Day & Night |
ICR |
|
Wide Dynamic Range |
Digital WDR |
|
BLC |
Yes |
|
HLC |
Yes |
|
Digital NR |
3D DNR |
|
Defog |
Yes |
Compression Standard |
|
|
Video Compression |
H.265/H.264/MJPEG |
|
Encoding |
VBR (Five Levels Adjustable) / CBR |
|
Smart Encoding |
Support Low Bitrate, Low Delay,; Support ROI coding & SVC Technology; Support Self-adaptive transmission bitrate as the network environment |
|
Bit Rate |
256 Kbps ~ 10 Mbps |
|
Audio Compression |
G711A/U |
|
ROI |
3 regions, each ROI can be configured separately |
Image |
|
|
Main Stream |
Fisheye panorama 3 PTZ 50Hz: 25fps@(2160×2160/1920×1920/1440×1440/960×960/480×480), 25fps@(1920×1080/704×576), 25fps@(960×540/480×240)*3 60Hz: 30fps@(2160×2160/1920×1920/1440×1440/960×960/480×480), 30fps@(1920×1080/704×576), 30fps@(960×540/480×240)*3 Fisheye 4 PTZ 50Hz: 25fps@(2160×2160/1920×1920/1440×1440/960×960/480×480), 25fps@(960×540/480×240)*4 60Hz: 30fps@(2160×2160/1920×1920/1440×1440/960×960/480×480), 30fps@(960×540/480×240)*4 |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
Interfaces |
|
|
Network |
RJ45 |
|
Video Output |
CVBS output ( BNC × 1 ) |
|
Audio |
1CH audio input; 1CH audio output; 1CH built-in MIC |
|
Storage |
Built-in micro SD card slot; up to 256GB |
|
Hardware Reset |
Yes |
|
Alarm |
1 CH alarm input; 1 CH alarm output |
|
RS 485 |
Yes |
Functions |
|
|
Remote Monitoring |
IE browser/TVT NVR/Mobile APP/NVMS |
|
Online Connection |
Support simultaneous monitoring for up to 11 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, HTTP |
|
Interface Protocol |
ONVIF, GB-T/28181-2016 |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection; SD card error, SD card full, IO alarm, cable disconnection, IP address conflict |
|
General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
|
POE |
Yes, IEEE802.3af |
|
IR Distance |
up to 98 ft. (20-30m) |
|
Ingress Protection |
Indoor |
Others |
|
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
<12W |
|
Operating Environment |
-22°F~140°F (-30°C ~ 60°C) Humidity: less than 95 % (non-condensing) |
|
Dimensions |
Φ 5 x 2 In. (130 × 41mm.) |
|
Weight |
Approx. 1 lb. (0.45 KG) |
|
Installation |
Ceiling mounting(wall mounting available with the junction box and bracket) |
