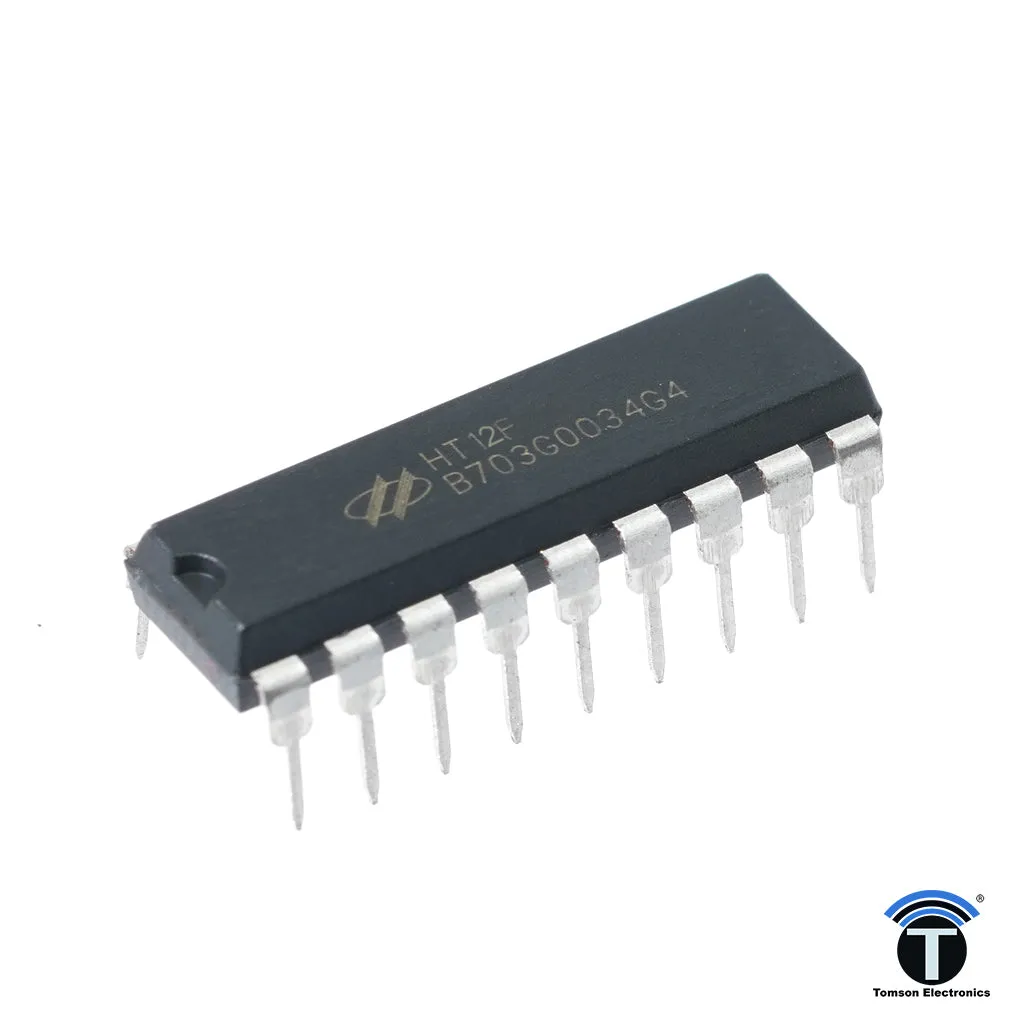

HT 12F

The 21(2) decoders are a series of CMOS LSIs for remote control system applications. They are paired with Holtek's 21(2) series of encoders (refer to the encoder/decoder cross reference table). For proper operation, a pair of encoder/decoder with the same number of addresses and data format should be chosen.

HT 12F Applications

•  Burglar alarm system
• Smoke and fire alarm system
• Garage door controllers
• Car door controllers
• Car alarm system
• Security system
• Cordless telephones
• Other remote control systems

Features

• Operating voltage: 2.4V~12V
• Low power and high noise immunity CMOS technology
• Low standby current
• Capable of decoding 12 bits of information
• Binary address setting
• Received codes are checked 3 times
• Address/Data number combination
• HT12D: 8 address bits and 4 data bits
• HT12F: 12 address bits only
• Built-in oscillator needs only 5% resistor
• Valid transmission indicator
• Easy interface with an RF or an infrared transmission medium
• Minimal external components
• Pair with Holteks 212 series of encoders
• 18-pin DIP, 20-pin SOP package
