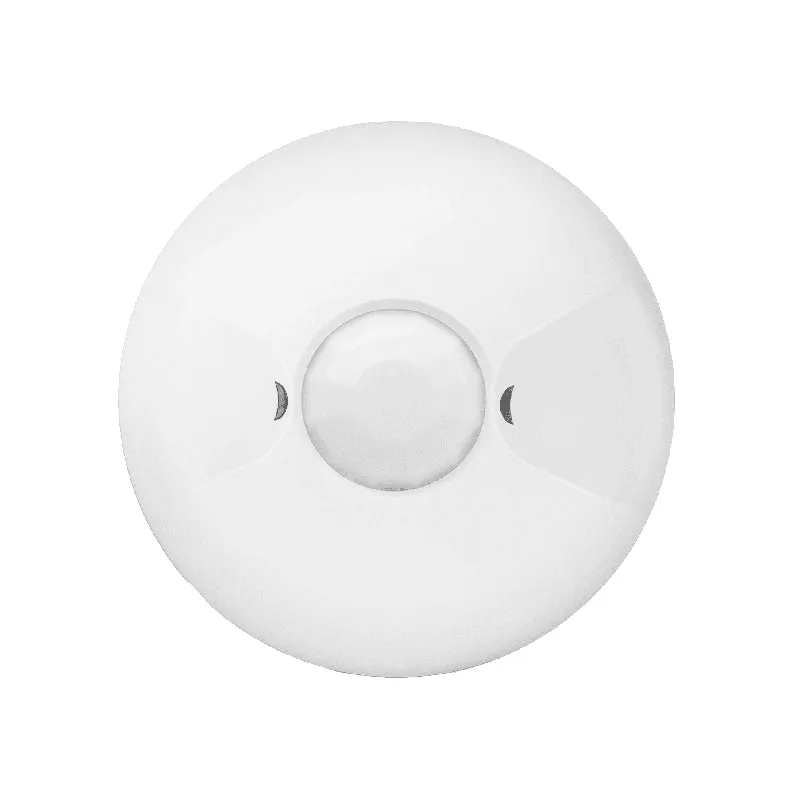

The ENERLITES MPC-50VD is a commercial grade line voltage ceiling mount sensor that operates lights using passive infrared (PIR) technology and 0-10V dimming.

Features

• Color: White
• Max Amperage: 10A
• Voltage: 120/277V
• Electronic Ballast/LED: 800VA-120VAC / 1385VA-277VAC
• Load Rating: 2mA - 50mA
• Motor: 1/4 HP
• Coverage: 1200 sq. ft.
• 360° field of view
• Dimmable 0-10V bi-level to 50 percent compliant with CA Title 24
• Four occupancy logic options give users the ability to customize control to meet application needs
• Time Delay is adjustable from 15 seconds to 30 minutes
• Adjustable PIR sensitivity setting
• Adjustable ambient light level to keep load off
• LED indicator light flashes when sensor detects motion to verify detection is active
• Zero-crossing for long relay life
• Sensor coverage tested to NEMA WD7-2000

Warranty

• 2-year warranty
