Product Details
＋
DH-VTH2421FW-P

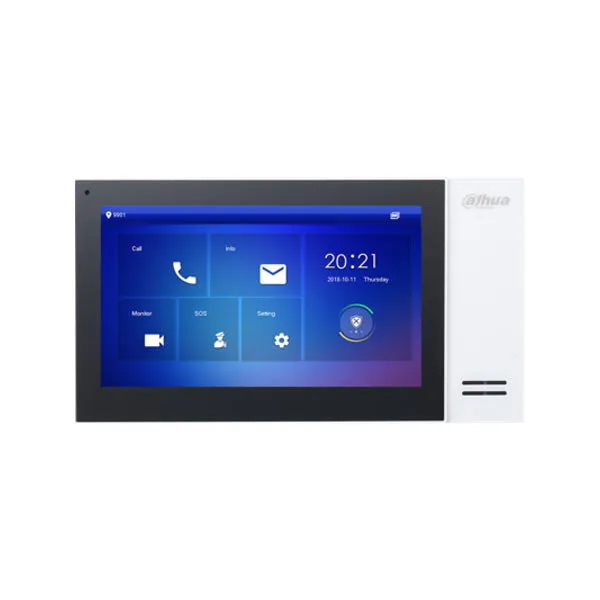

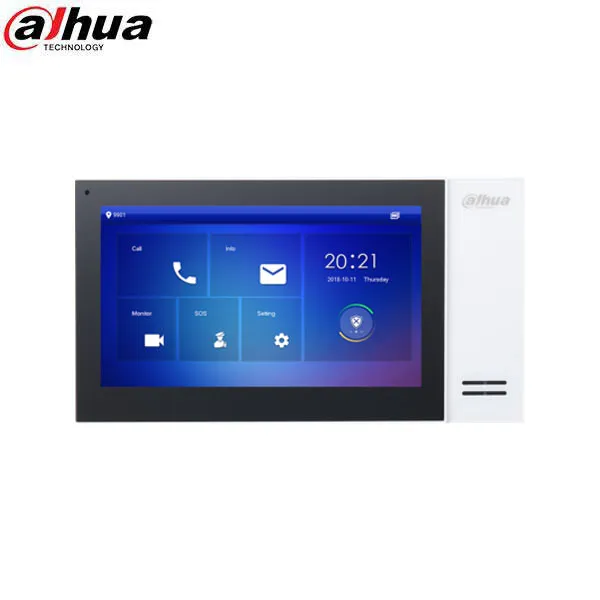

The Dahua DHI-VTH2421FW-P indoor monitor allows tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor. The DHI VTH2421FW-P indoor monitor is used as part of a video intercom solution with compatible outdoor stations.
Features
- 7-inch TFT Screen
- 1024 x 600 Resolution
- Simplified Connection and Setup to Compatible Outdoor Stations
- Integrated Micro SD Card Slot, maximum 32 GB
- Perform Call Session Recordings and Take Snapshots of Live Video(requires SD card)
- Setup and Activate up to Six (6) Alarm Inputs
- Call 1-800-878-6604 for Dealer Prices!
Specifications
| System |
|
|---|---|
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded Linux |
| Display |
|
|---|---|
| Viewing Area | 7-in. TFT LCD, Capacitive |
| Resolution | 1024 x 600 |
| Input | Touchscreen Technology |
| Audio |
|
|---|---|
| Mode | Full Digital Two-way Bidirectional Talk |
| Audio | G.711A, G.711U, PCM |
| Input | Built-in Omnidirectional Microphone |
| Output | Built-in 1.5 W Loudspeaker |
| Enhancement | Echo Cancellation, DNR |
| Bit Rate | 16 Kbps |
| Alarm | |
|---|---|
| Input |
Six (6) Channels |
| Output | One (1) Channel |
| Network |
|
|---|---|
| Video Compression | H.264 |
| Ethernet | One (1) RJ-45 Port |
| Network Protocol | TCP/IP |
| Certifications |
|
|---|---|
| Safety | EN 60950-1:2006 A11:2009 A1:2010 A12:2011 A2:2013 IEC 60950-1:2005 (Second Edition); Am1:2009 Am2:2013 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B EN 55032:2015; EN 610003 2:2014; EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014 |
| Electrical |
|
|---|---|
| Power | 12 VDC or PoE (IEEE802.3af Class 0) |
| Power Consumption |
Standby: ≤ 4 W Operation: ≤ 6 W |
| Environmental |
|
|---|---|
| Operating Temperature | –10° C to 55° C (14° F to 131° F) |
| Operating Humidity | 10% to 95%, Relative |
| Construction |
|
|---|---|
| Dimensions | 119.60 mm x 221.50 mm x 21.50 mm (4.71 in. x 8.72 in. x 0.85 in.) |
| Net Weight | 0.35 kg (0.77 lb) |
| Installation | Wall-mount |
