Product Details
＋

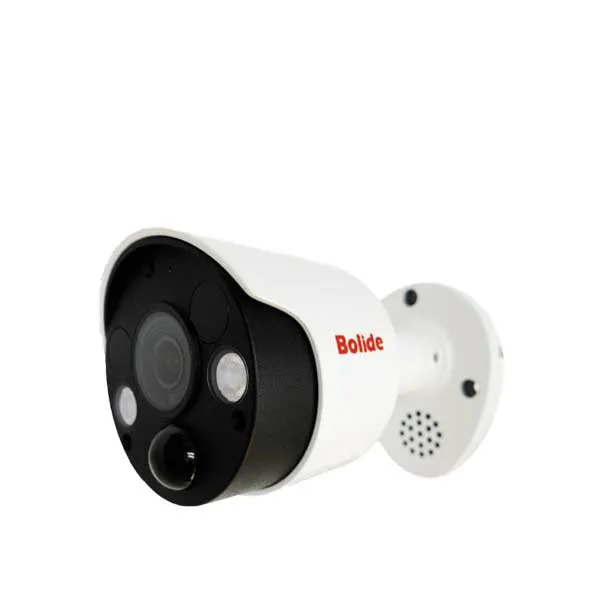

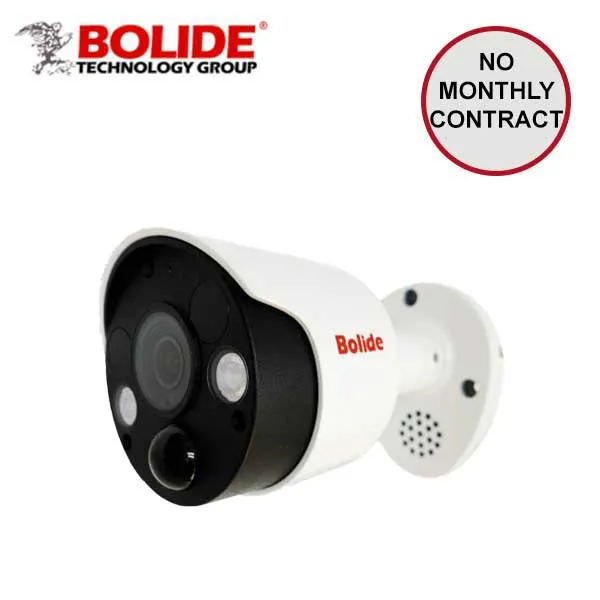

The BN8035F-NDAA features up to 5 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards - High-Efficiency Video Coding (HEVC / H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate.
Features:
- 2 Built-in Floodlights with Distance Up to 30 Feet
- Built-in PIR with Distance Up to 20 Feet
- 5MP resolution
- Built-In POE
- IP67 Weather-proof Housing
- Built-in Microphone 2-Way Audio
- NDAA Compliant
Specifications:
| Image Sensor | 1 / 2.7” Progressive Scan CMOS |
| Resolution | Mainstream: (1-15fps optional) 5MP (2592x1944), 4MP(2592x1520), 1080P(1920x1080), 960P(1280x960P), 720P(1280x720P) |
| Effective Pixels | 5MP 2592 ( H ) x 1944 ( W ) |
| Focal Length | 4.0mm / F2.0 fixed lens / M12 |
| Noise Reduction: | 3D |
| WDR: | 120db |
| Video Output: | RS-485 |
| Compression: | H.265 |
| Min. Illumination | [email protected](AGC ON),0Lux with IR |
| Smart IR |
Yes |
| IR Night Vision Range |
65 Feet |
| Built-in IR LED/ICR | Yes, 2 Array IR |
| IR LED Type | 850nm |
| PIR Distance | Up to 20 Feet |
| Aspect Ratio | 4 : 3 |
| Working voltage | DC12V±10% |
| Power Consumption | 4.2 W, 350mA |
| Waterproof grade | IP66 |
| Dimensions | Φ70mm×151mm |
