• Manufacturer: Altronix
• Access Power Controller
• PN: MAXIMAL33

Features and Benefits:

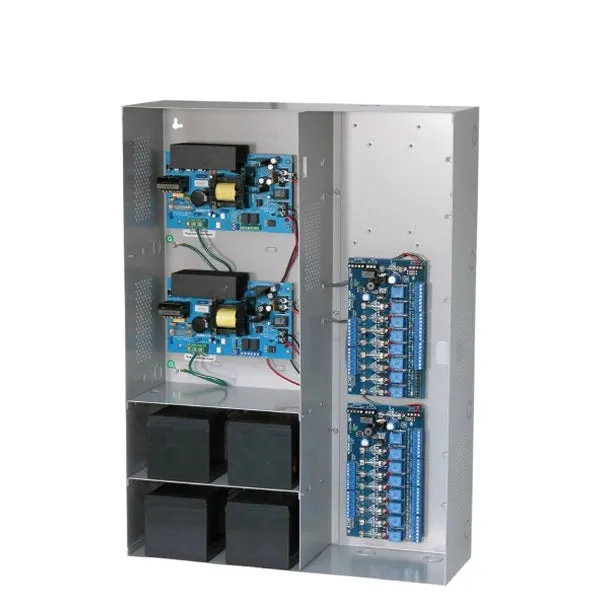

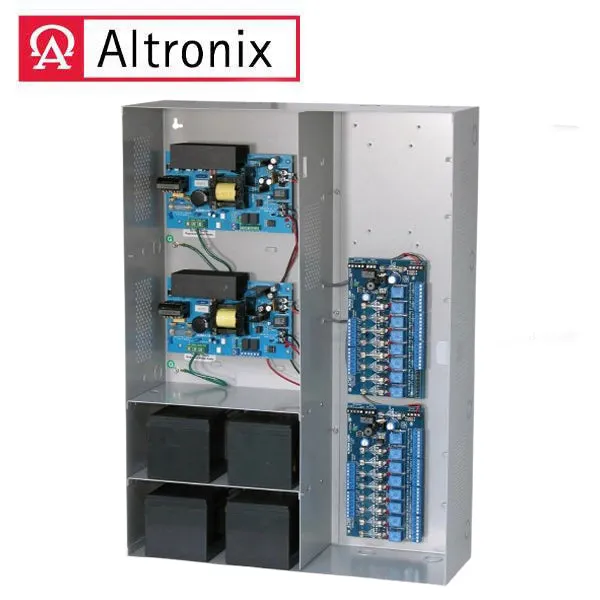

The Altronix MAXIMAL33 is a versatile power supply that is perfect for access control systems, CCTV, fire alarms, and POIP applications. It converts 115VAC to 12VDC or 24VDC, offering 16 fuse-protected outputs for devices like Mag Locks and Electric Strikes. With features like Fail-Safe/Fail-Secure support, fire alarm disconnect, and emergency egress, it's designed to enhance system performance and efficiency, integrating seamlessly with professional security systems.

Power supply input options:

• Two (2) common power input for either ACM8 and lock power (factory installed).
• Two (2) isolated power inputs (external power supply is required), (current is determined by the power supply connected, not to exceed a maximum of 10A total).
• Sixteen (16) Access Control System trigger inputs.

Input options:

• Sixteen (16) normally open (NO) inputs.
• Sixteen (16) open collector inputs.
• Any combination of the above.

Output

• 12VDC and/or 24VDC outputs.
• Maximum output current Options:
  • A) 12VDC @ 5.5A plus 12VDC @ 5.5A.
  • B) 24VDC @ 5.7A plus 24VDC @ 5.7A.
  • C) 12VDC @ 5.5A plus 24VDC @ 5.7A.

Output options:

• a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.
• b) Sixteen (16) form "C" 5A rated relay outputs.
• c) Any combination of the above.
• Sixteen (16) auxiliary power outputs (unswitched), (outputs are rated 3.5A).
• Filtered and electronically regulated outputs (built-in power supply).
• Thermal and short circuit protection with auto reset.

Fuse Ratings

• Power Supply input fuse rated @ 3.5A/250V.
• ACM8 boards main fuse is rated at 10A.
• Output fuses are rated @ 3.5A.

Features

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.
• Fire Alarm disconnect input options:
  • • a) Normally open (NO) or normally closed (NC) dry contact input.
    • b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (form "C" contact).

Battery Charging

• Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.
• (Batteries are sold separately).

Visual Indicators

• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: -20° C to 70° C (-4° F to 158° F).
• Relative Humidity: 85% /- 5%.

BTU/Hr. (approx.):

• 12VDC: 68 BTU/Hr.
• 24VDC: 140 BTU/Hr.
• 12VDC & 24VDC: 104 BTU/Hr.
• System AC input VA requirement: 805VA.
