Product Details

LEDs and passives and transistors and switches oh my! The Adafruit Parts Pal is the ultimate companion for an entry-level maker learning electronics. This kit is your friend whenever you need to build up a project. It contains many of our most popular components and prototyping parts all wrapped up in one parts pack so you can open up and dig right in.

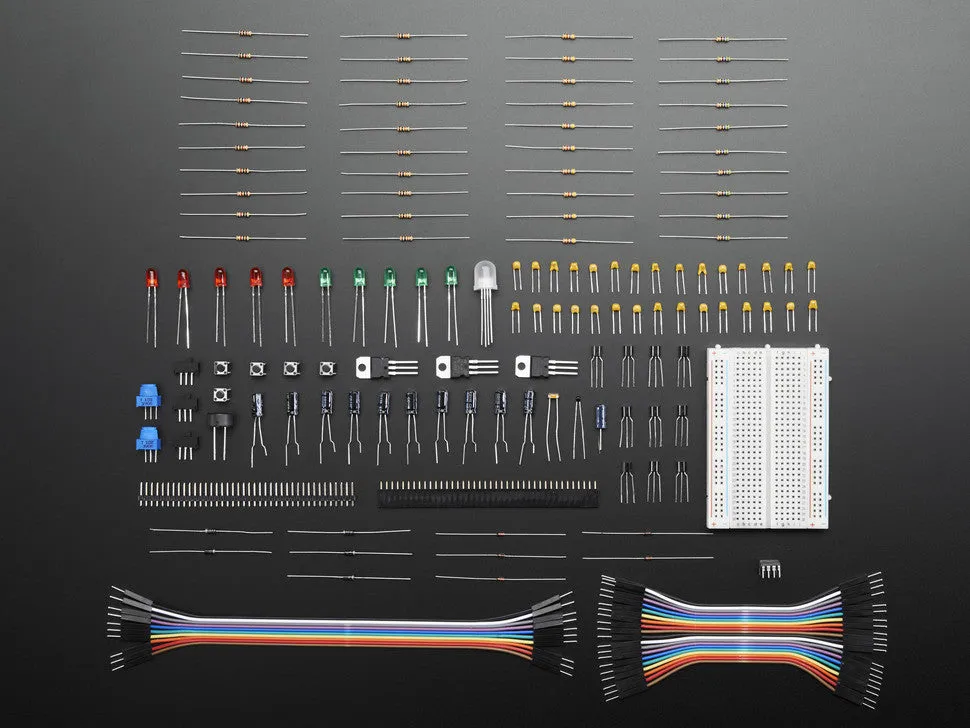

Kit Contents:

Prototyping:

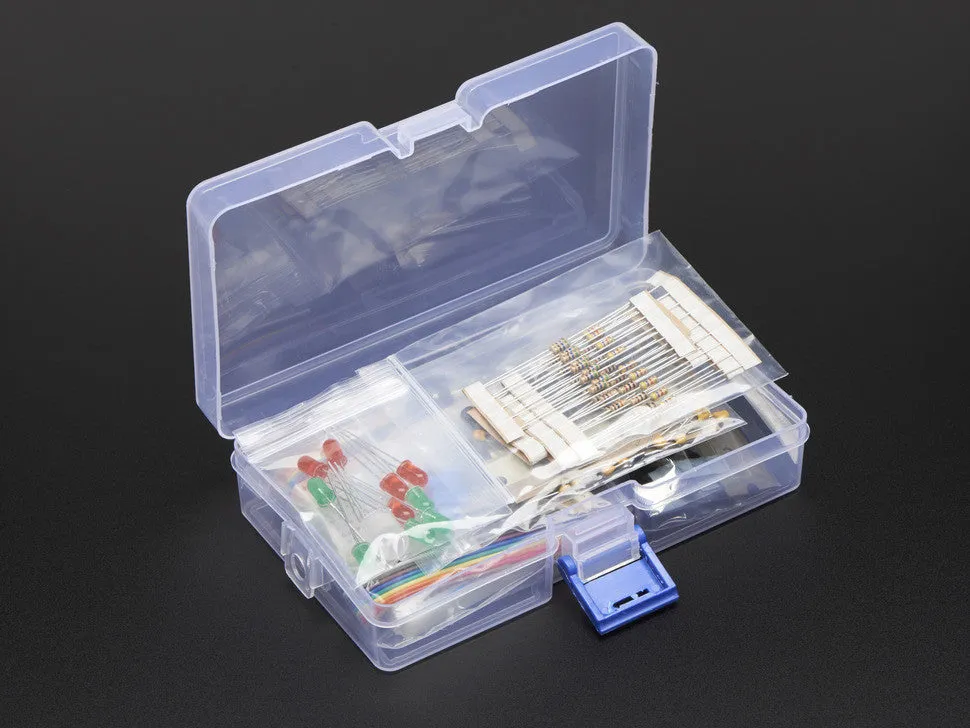

  • 1x - Storage box with latch
  • 1x - Half-size breadboard
  • 20x - Male/male jumper wires - 3" (75mm)
  • 10x - Male/male jumper wires - 6" (150mm)

LEDs:

  • 5x - 5mm Diffused green LEDs
  • 5x - 5mm Diffused red LEDs
  • 1x - 10mm Diffused Common-Anode RGB LED

Capacitors:

  • 10x - 1.0uF Ceramic capacitors
  • 10x - 0.1uF Ceramic capacitors
  • 10x - 0.01uF Ceramic capacitors
  • 5x - 10uF 50V Electrolytic capacitors
  • 5x - 100uF 16V Electrolytic capacitors

Resistors:

  • 10x - 560 ohm 5% axial resistors
  • 10x - 1K ohm 5% axial resistors
  • 10x - 10K ohm 5% axial resistors
  • 10x - 47K ohm 5% axial resistors

Semiconductors:

  • 5x - 1N4001 Diodes
  • 5x - 1N4148 Signal Diodes
  • 5x - NPN Transistor PN2222 TO-92
  • 5x - PNP Transistor PN2907 TO-92
  • 2x - 5V 1.5A Linear voltage regulator - 7805 TO-220
  • 1x - 3.3V 800mA Linear voltage regulator - LD1117-3.3 TO-220
  • 1x - TLC555 wide-voltage range, low-power 555 Timer

Sensors:

  • 1x - Photocell
  • 1x - Thermistor (Breadboard version)
  • 1x - Vibration sensor switch
  • 1x - 10K Breadboard trim potentiometer
  • 1x - 1K Breadboard trim potentiometer

Mechanical:

  • 1x - Piezo buzzer
  • 5x - 6mm Tactile switches
  • 3x - SPDT slide switches
  • 1x - 40-pin Break-away male header strip
  • 1x - 40-pin female header strip

Technical Details

Revision history

  • As of July 20, 2016 we now include an LM358 dual opamp!

Datasheets:

  • Thermistor
    • Resistance at 25 degrees C: 10K - 1%
    • B25/50 = 3950 - 1%
    • Thermal time constant <= 15 seconds
    • Thermistor temperature range -55 °C to 125 °C
Adafruit Parts Pal
